AC Infinity

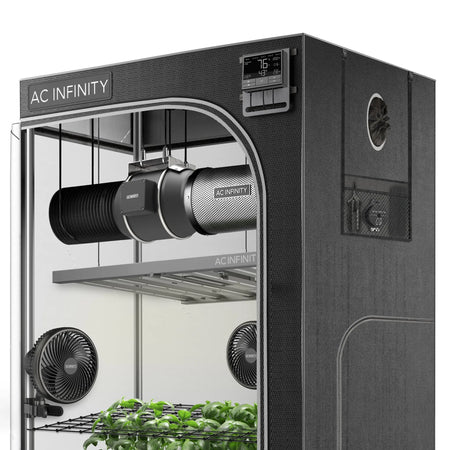

Advance Grow Tent System with WIFI Controls 5' x 5'

• An advance grow tent kit with smart controls and integrated components to start an indoor growing system.
• Controller automates each fan and light with individual programs to dynamically adjust speed and brightness.
• Connect your mobile device to our app via WiFi to automate and track your grow tent climate from anywhere.
• EC inline fan 6”, oscillating clip fan 6”, and 730W full-spectrum bar grow light with Samsung LM301H EVO LEDs.
• Premium 2000D Mylar tent 60”x60”x80”, Australian carbon filter, ducting, fabric pots, pruning snips, and more.

PRODUCT DESCRIPTION

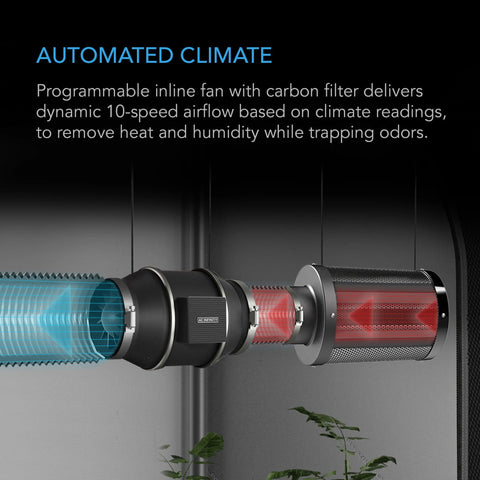

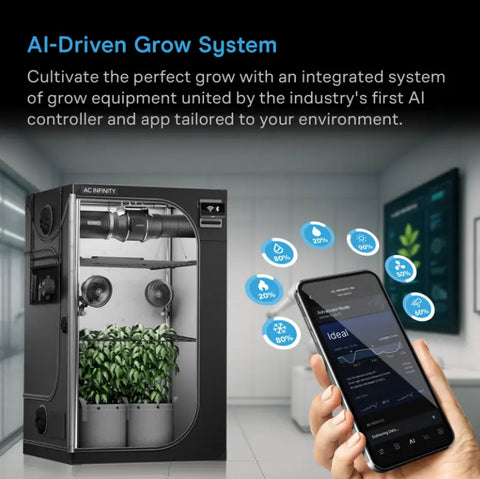

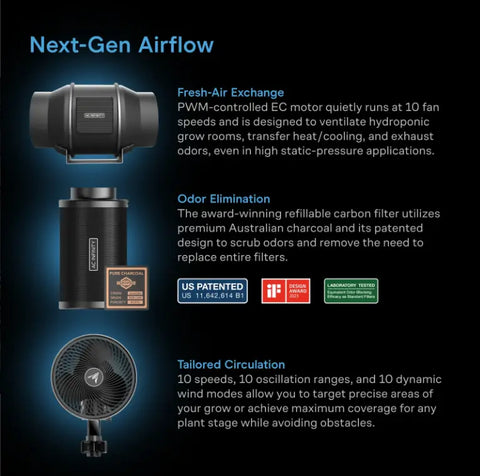

An advance grow tent system with intelligent controls to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, carbon filter, and ducting manage your tent’s climate conditions by routing heat, humidity, and odor away from it. Air is circulated inside with the oscillating clip-on fan to provide light breezes to your plants.

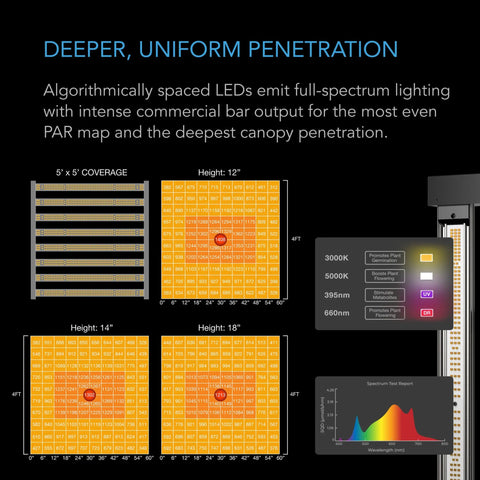

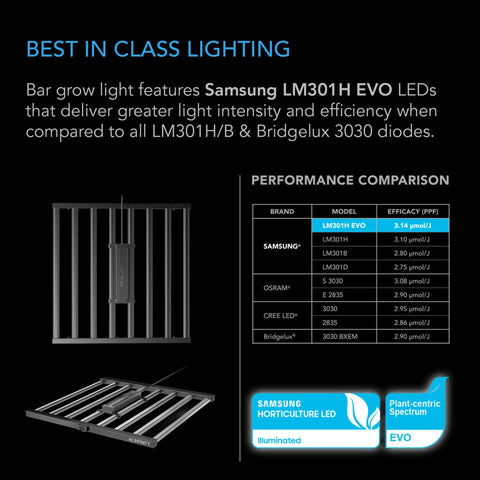

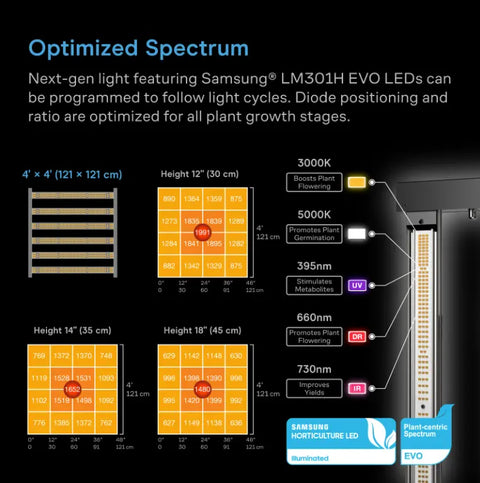

Algorithmically arranged LM301H EVO diodes on the grow light frame emit powerful LED lighting over wide coverage to simulate natural sunlight and optimize growth. These Samsung LEDs are the best in their class, delivering higher light intensity and greater efficiency per diode than LM301H, LM301B, Bridgelux 3030, and other popular LEDs.

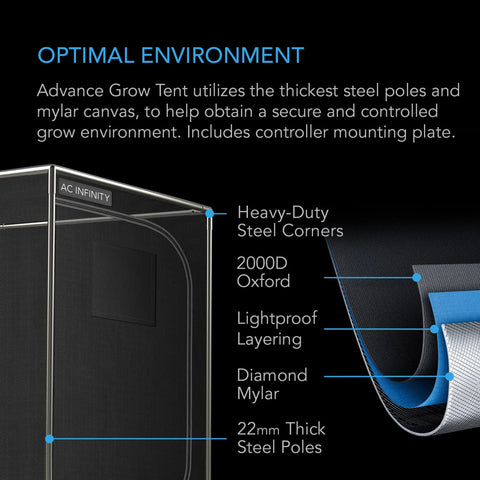

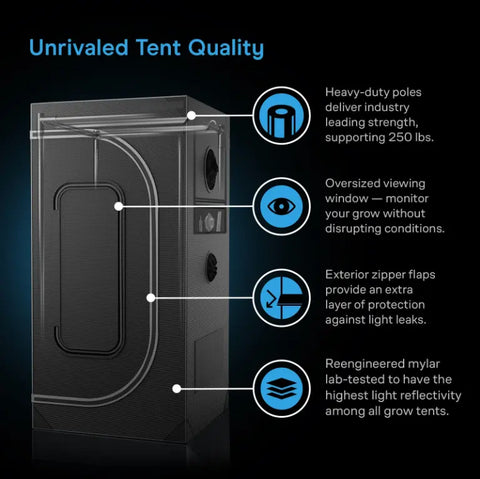

The devices are housed in a high-density oxford grow tent, featuring a sturdy steel frame and Mylar walls to create a climate-controlled grow space.

INTELLIGENT PROGRAMMING

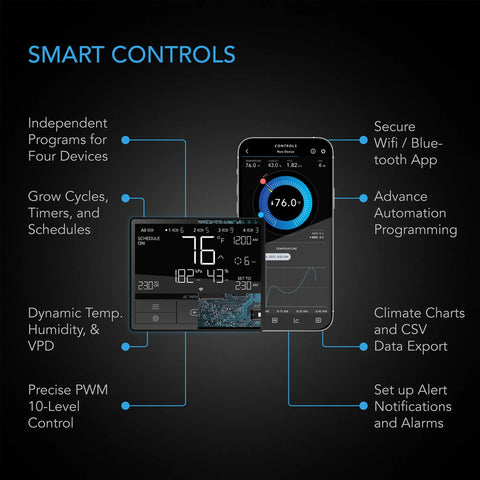

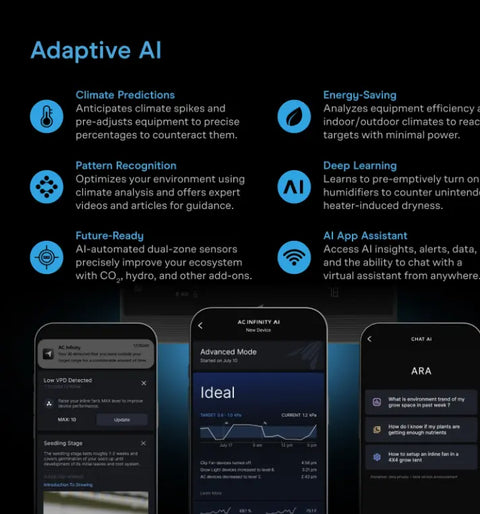

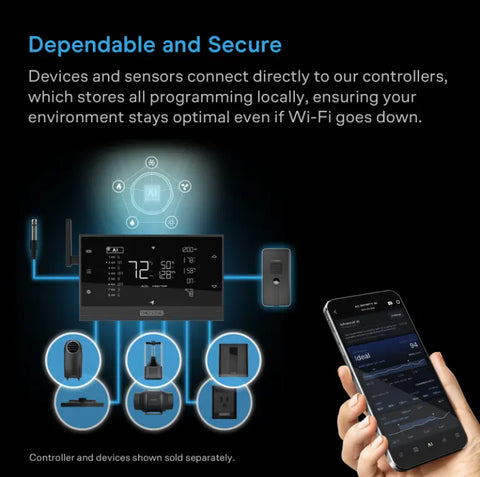

Integrating these components is the CONTROLLER 69 PRO, engineered to provide each device with shared or independent programming. This central control unit can set dynamic programs to activate your grow devices in response to VPD (vapor pressure deficit) levels, in addition to temperature and humidity, to help you further dial into your ideal growing space. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect to the AC Infinity app via WiFi to remotely access your indoor grow system from anywhere outside the boundaries of your home, unlocking advance programs, alerts, notifications, and historical charts.

COMPLETE KIT

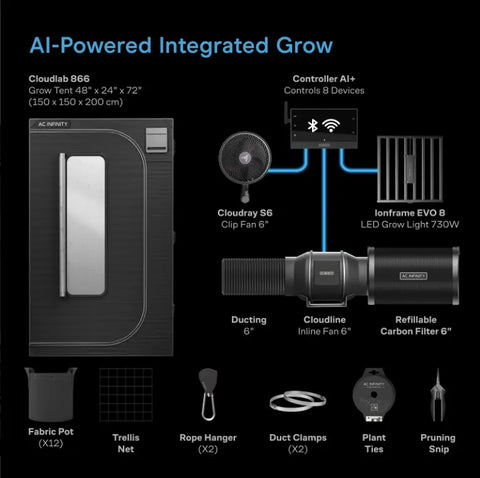

This package assembles all the essential components to help you quickly start your indoor grow while eliminating the guesswork of purchasing them individually. The full grow tent kit will include the following:

• CLOUDLAB 866 – Advance Grow Tent 60”x60”x80” (x1)
• CONTROLLER 69 PRO – Grow Tent Controller (x1)
• CLOUDLINE PRO 6 - Inline Fan 6" (x1)
• IONFRAME EVO8 – Commercial Bar LED Grow Light 730W (x1)

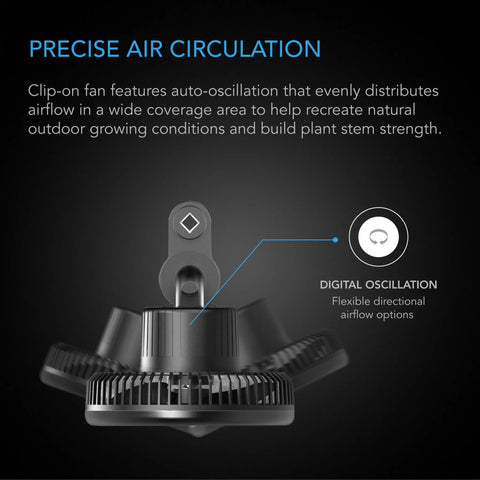

• CLOUDRAY S6 – Oscillating Circulation Clip Fan (x2)
• Carbon Filter 6” (x1)
• 6” Flexible Ducting, 25’ Long (x1)
• Hanging Straps (x2)
• Rope Clip Hangers (x2)
• 6” Steel Clamps (x2)
• Hook and Loop Ties (x10)
• 6’ UIS Male to Male Controller Cord (x1)
• 6’ L-Shaped UIS Male to Male Controller Cord (x2)
• 5-gallon Fabric Pots (x15)
• Elastic Trellis Netting 5x5’ (x1)
• Black Wire Twist Ties (x1)
• Micro-tip Pruning Shears (x1)

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	Advance Grow System B55
Product Model	AC-PKB55
UPC Code	819137024038
Product Manual
Product Manual	PDF
Product and Mounting Dimensions - Grow Tent
Tent Dimensions	60" x 60" x 80" (152.4 x 152.4 x 203.2 cm)
Duct Opening Sizes	4", 8"
Viewing Window Size	11.81 x 11.81 in. (30.0 x 30.0 cm)
Rear Intake Hole Size	5.90 x 13.77 in. (15.0 x 35.0 cm)
Side Intake Hole Size	5.90 x 13.77 in. (15.0 x 35.0 cm)
Mounting Strap Length	6.49 in. (16.5 cm)
Product Performance and Technical Specs - Grow Tent
Outer Tent Material	Oxford
Inner Tent Material	Mylar
Pole Material	Steel
Pole Thickness	22 mm
Beam Weight Capacity	150 lbs.
Plant Capacity	6
Product and Mounting Dimensions - Inline Fan
Duct Size	6"
Total Dimensions	7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
Mounting Hole-To-Hole Distance	3.15 x 2.36 in. (8.0 x 6.0 cm)
Screw Hole Size	Ø 0.236 in. (Ø 0.6 cm)
Cord Length to Controller	240 in. (20 feet)
Cord Length to Plug	96 in. (8 feet)
Performance and Technical Specs - Inline Fan
Total Airflow	402 CFM
Total Noise	32 dBA
Static Pressure	503 Pa
Voltage	100-240V AC
Frequency	50/60Hz
Max Power Draw	64 W
Average Power Usage	38 W
Current	1.67 A
Power Connector Type	US Plug (NEMA 1-15 Type-A)
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Ingress Protection	IP 44
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
Life Expectancy	67,000 Hours
CE Certification (Whole Product)	PDF
ETL Cert. (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
SAA Cert. (Whole Product)	PDF
Product and Mounting Dimensions - Clip Fan
Impeller Size	6.5"
Total Dimensions	8.74 x 10.47 in. (22.2 x 26.6 cm)
Cord Length to Plug	96 in. (8 feet)
Product Performance and Technical Specs - Clip Fan
Maximum Airflow	315 CFM
Total Noise	33 dBA
Static Pressure	25 Pa
Operating Voltage	100-240V AC
Power	8 W
Current	0.14 A
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Waterproof Rating	IP-44
Rotation Range	90°
Tilt Angle	55°
Oscillation	Automatic Oscillation
Fan Bearings	Dual Ball Bearing
Mounting Positions	Horizontal or Vertical
Life Expectancy	67,000 Hours
Product and Mounting Dimensions - Controller
Total Dimensions	5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Hole to Hole Distance	4.71 x 2.64 in. (12.0 x 6.7 cm)
Screw Hole Size	Ø 0.119 in (Ø 0.3 cm)
Display Size	3.5 x 1.4 in. (9 x 3.5 cm)
Sensor Probe Length	144 in. (12 feet)
Product Performance and Technical Specs - Controller
Maximum Devices Controlled	4
Max Power Supported	10 W
Programming Temperatures	32 to 140°F
Operating Voltage	9 to 18V
Power	1 W
Current	0.1 A
Power Input	12V from Device
Operating Humidity	35 to 85% RH
FCC Cert. (Whole Product)	PDF
Product and Mounting Dimensions - LED Grow Light
Light Dimensions	44.09 x 44.48 x 3.38 in. (112.0 x 113.0 x 8.6 cm)
Product Performance and Technical Specs - LED Grow Light
Coverage	5 x 5 ft.
Diodes	Samsung LM301H EVO
Spectrum	395nm, 660nm, 3000K, 5000K
Chip Count (Total)	2688
Chip Count (EVO 3000K)	1720
Chip Count (EVO 5000K)	864
Chip Count (Seoul 395 nm)	8
Chip Count (OSRAM 660 nm)	96
LED Driver	SOSEN-320W
Efficiency (Single Diode)	3.14 µmol/J
PPFD	1408 PPFD
Wattage	730 W
Voltage	100-277V AC
Frequency	50/60 Hz
Controller	Schedule Controller
Power Connector Type	US Plug (NEMA 1-15 Type-A)
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Waterproof Rating	IP-65
Life Expectancy	50,000 Hours
Product and Mounting Dimensions - Carbon Filter
Duct Opening Size	6"
Total Dimensions	15.94 x 8.93 in. (40.5 x 22.7 cm)
Flange Length	1.57 in. (4.0 cm)
Product Performance and Technical Specs - Carbon Filter
Flange Material	Aluminum
Flange Design	Reversible
Mesh Material	Galvanized Steel
Carbon Type	Australian Virgin RC412
Carbon Grade	1200+ IAV
Carbon Thickness	38mm
Maximum Airflow	410 CFM
Product Dimensions - Ducting
Ducting Size	6 in. (15.2 cm)
Length	96 in. (8 ft)
Product Performance and Technical Specs - Ducting
Outer Layer	PVC Thermoplastic
Inner Material	Aluminum Foil
Internal Structure	Spiral Steel-Wire
