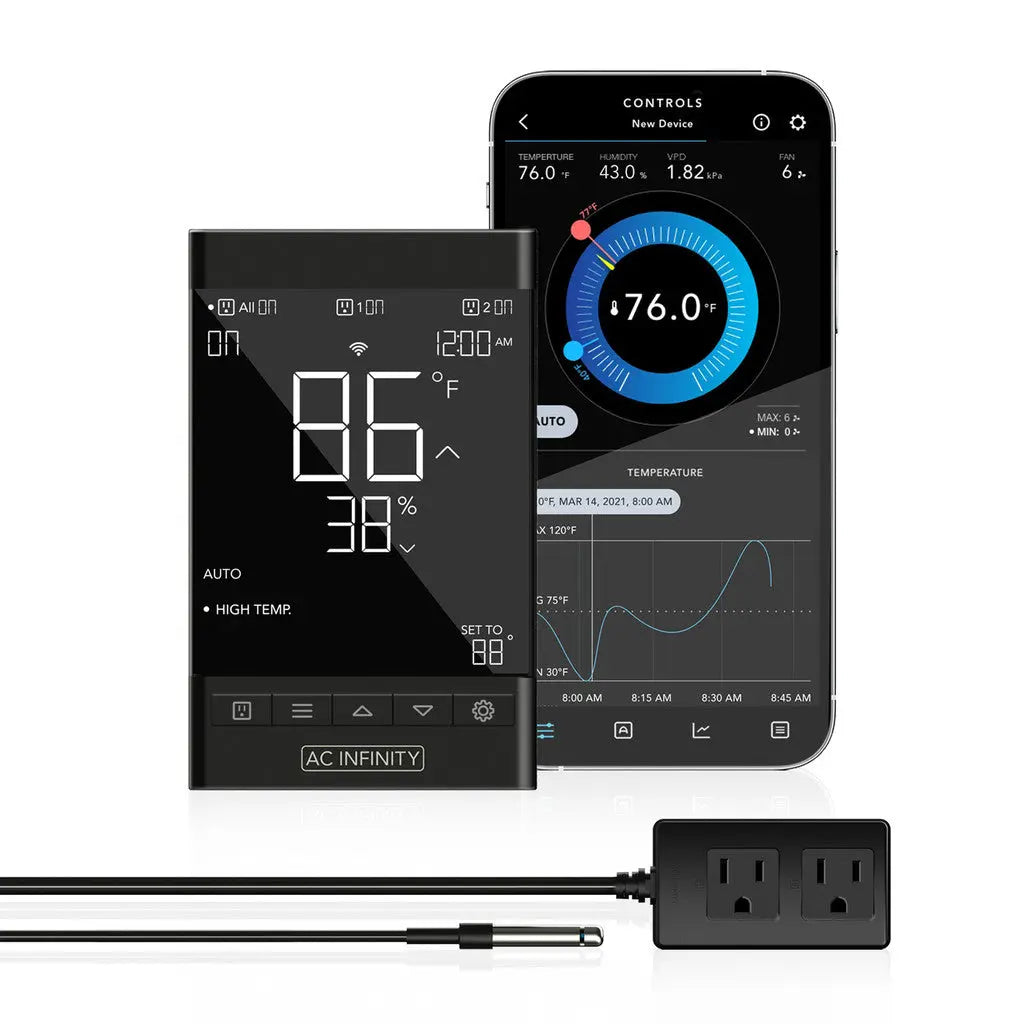

AC Infinity Controller 79
- A digital controller designed to equip outlet devices with smart controls for HVAC or growing applications.
- Powers up to two outlet devices on or off and provides each with independent programming.
- Programs include temperature, humidity, & VPD triggers, timers, cycles, scheduling, and custom buffers.

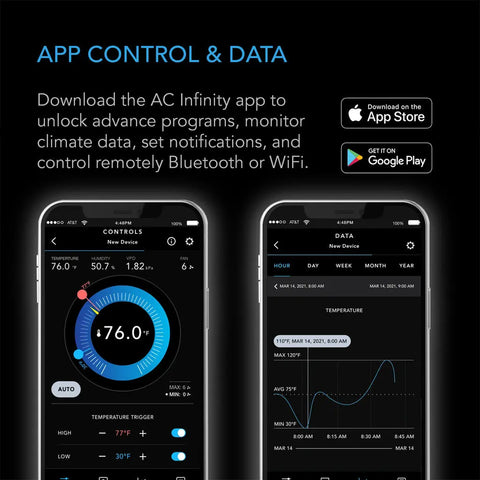

- Pair with our app via Bluetooth or WiFi to unlock advance programs, set notifications, and view climate data.
- Two outlets collectively support up to 1100W to control plugged-in devices together or independently.
PRODUCT DESCRIPTION

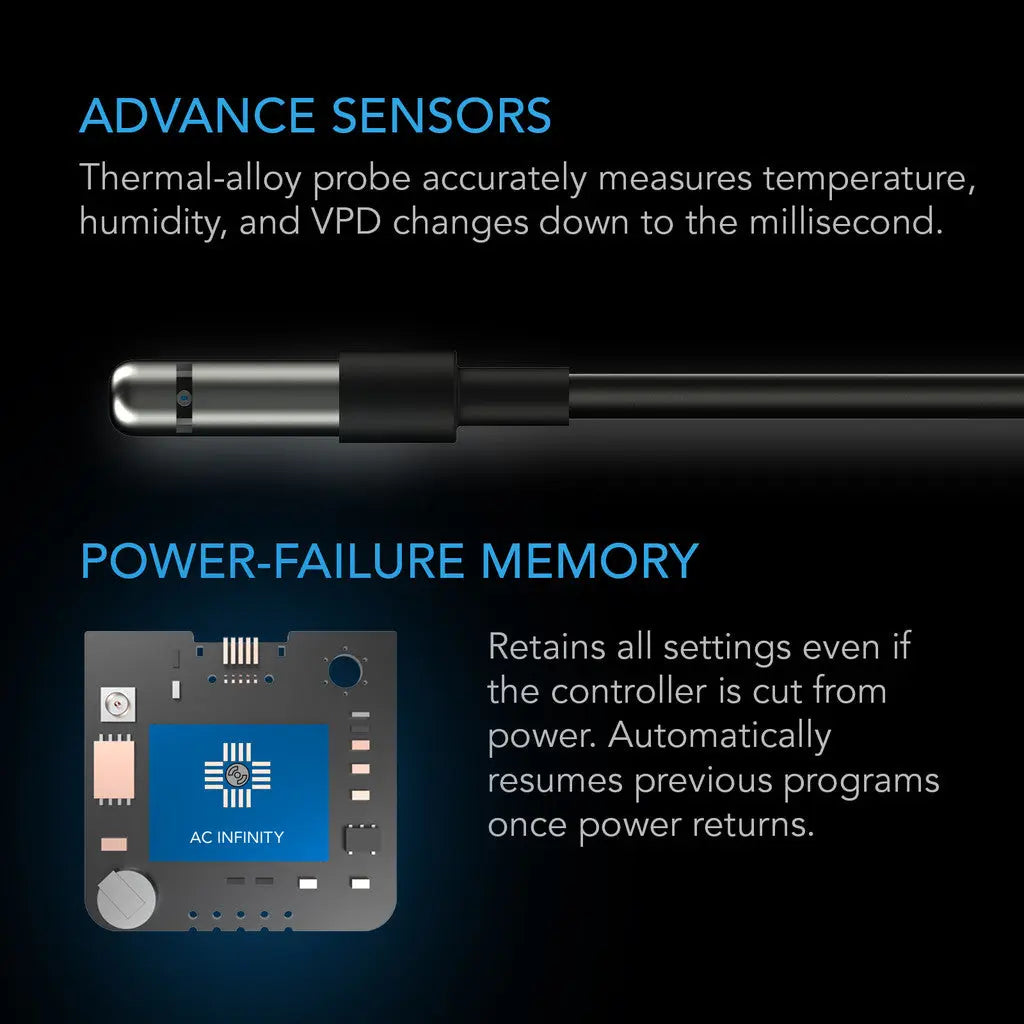

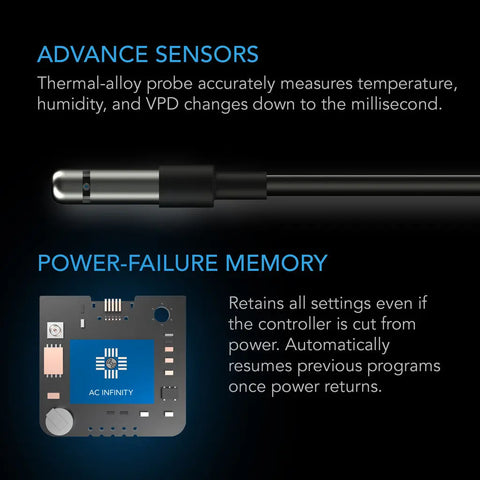

A digital outlet controller designed to provide multiple devices with independently programmed temperature, humidity, VPD, and time-based controls. It is built with a large backlit LCD display with climate readings and settings that can be set to Fahrenheit or Celsius. Includes a 12-foot sensor probe with a waterproof thermal-alloy head that accurately detects current temperature, humidity, and VPD conditions. The controller’s two outlets can power devices up to 1100W combined to automate their programming.
INTELLIGENT PROGRAMMING

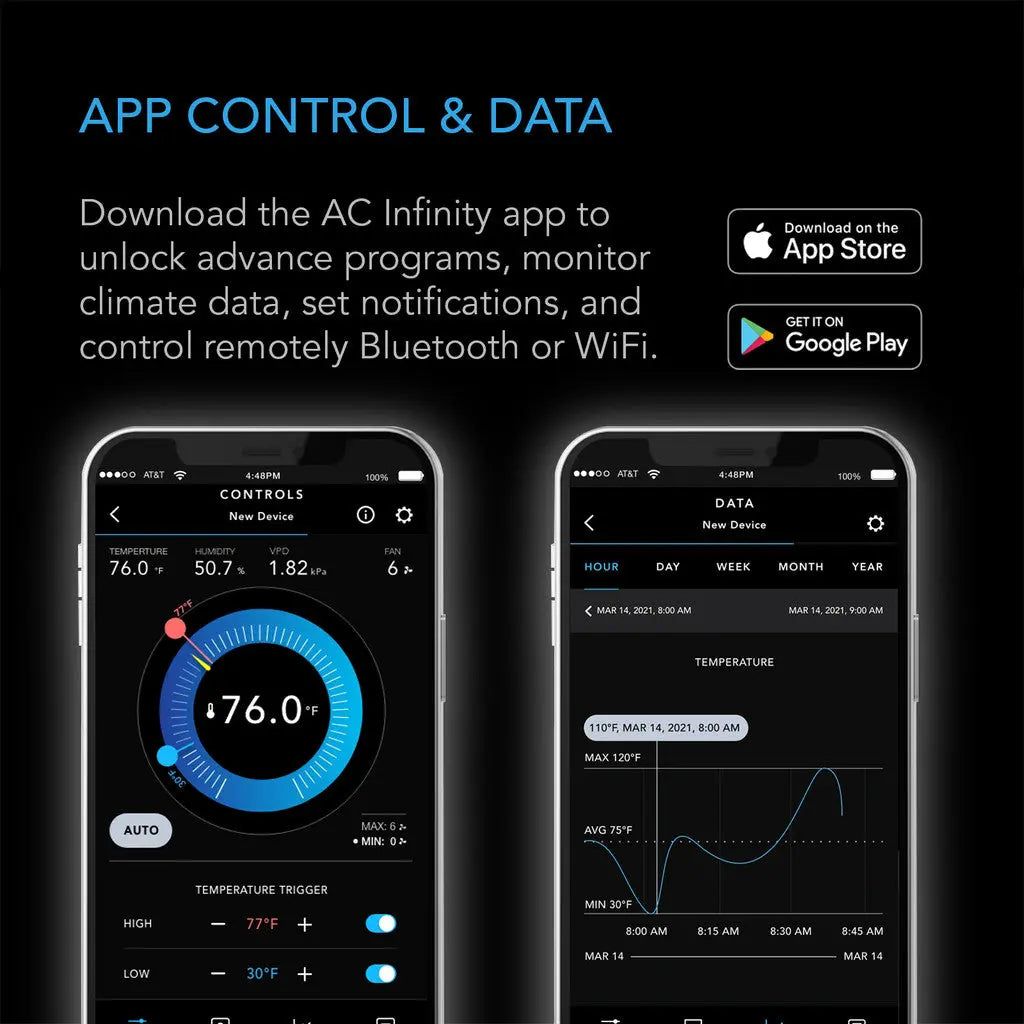

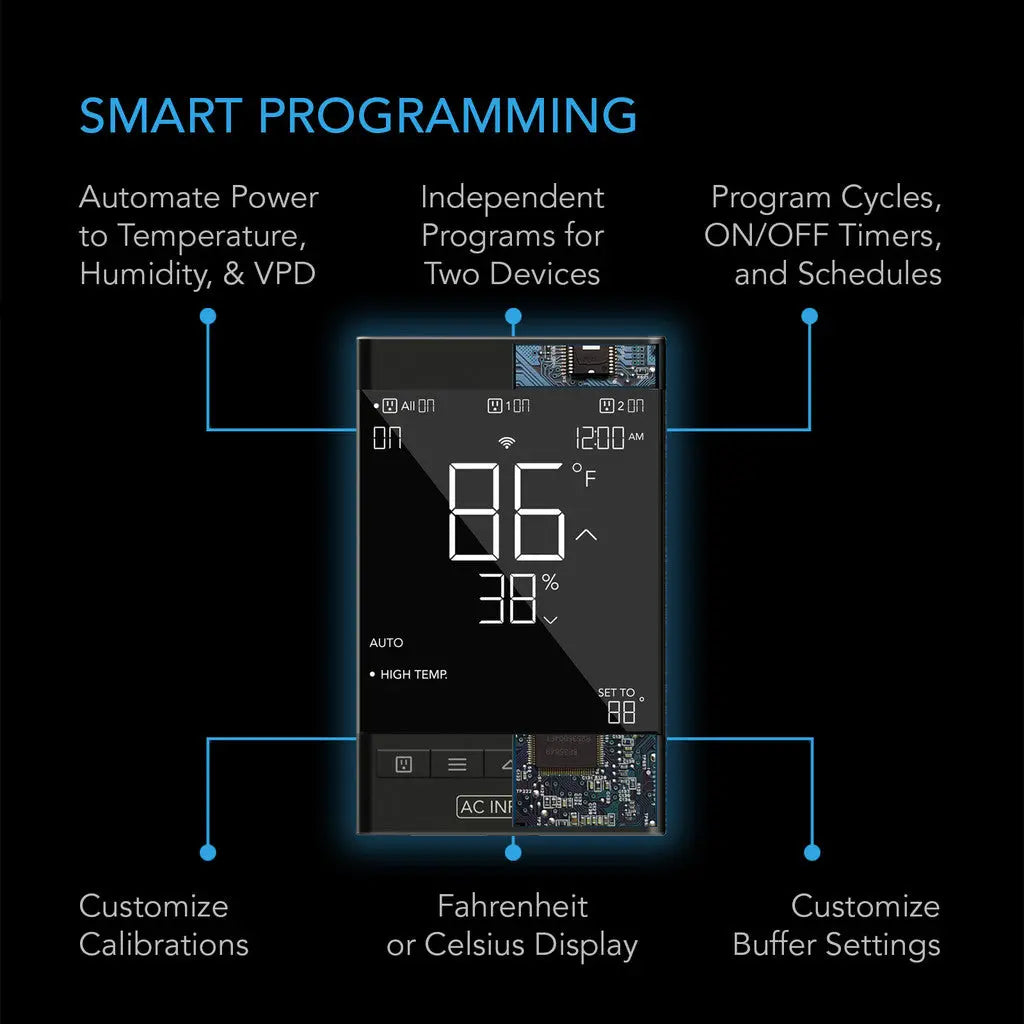

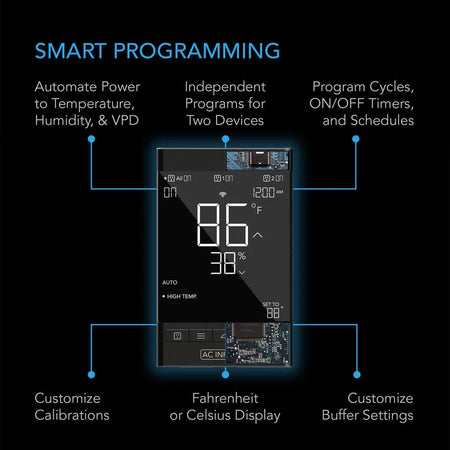

Features programmable triggers that power two outlet devices to turn on or off in response to temperature, humidity, and VPD levels. Adjust buffer settings to customize how they react to climate changes. Timer, on/off cycle, and schedule modes add custom on-demand activation for a variety of uses. Backup memory retains settings even if the controller is cut from power. Securely connect with the AC Infinity app via Bluetooth or WiFi to access your outlet controller remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data.
COMPATIBILITY

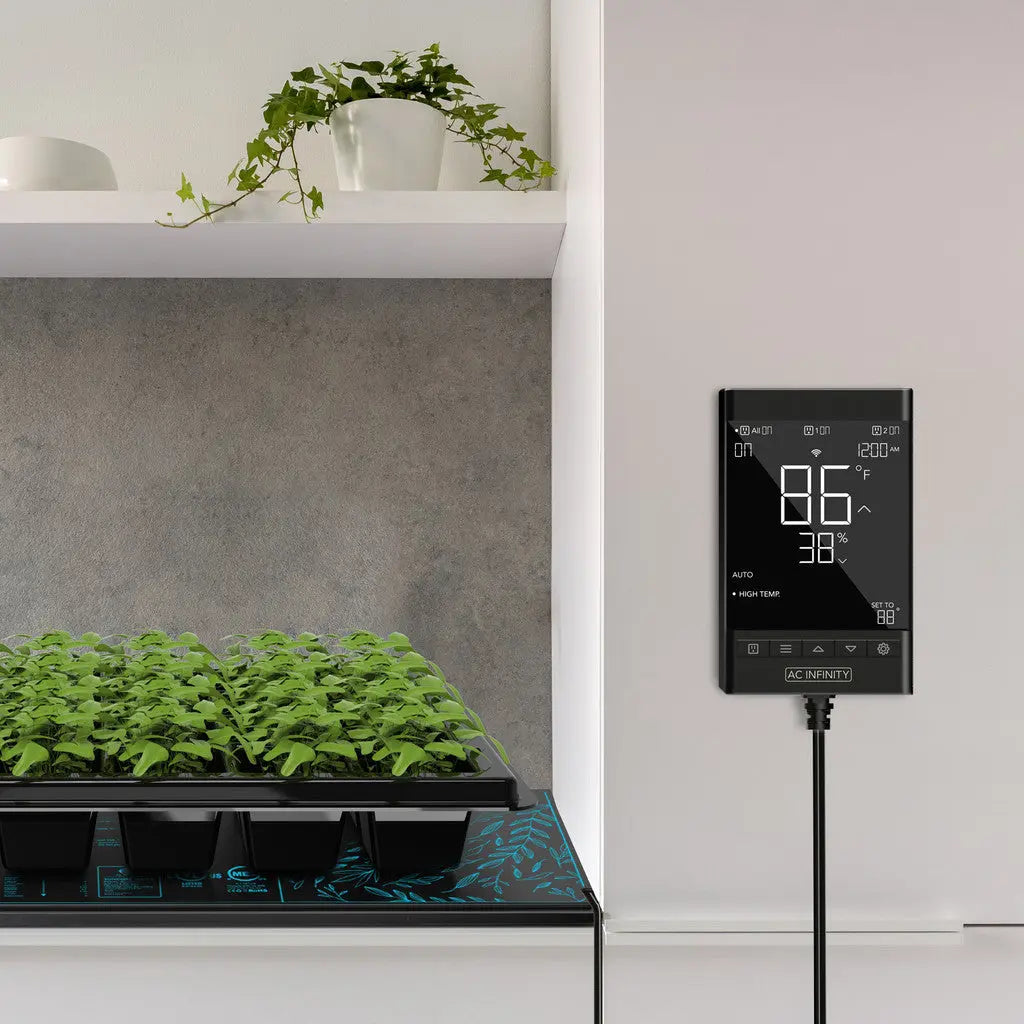

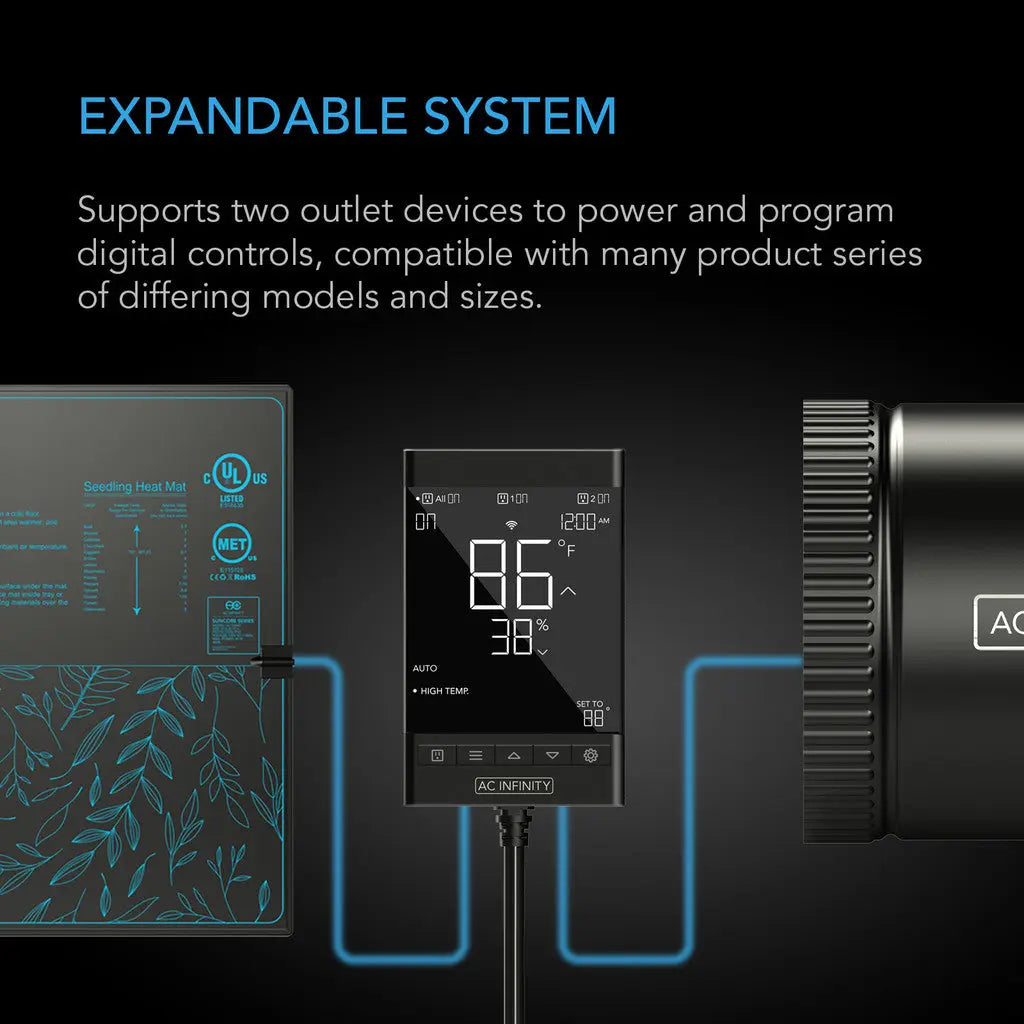

This smart outlet controller is equipped with two outlet sockets to power and distribute unique programming to two devices, supporting up to 1100W. Plug devices with AC power plugs in such as inline duct fans, shutter exhaust fans, or clip-on oscillating fans to automate cooling and airflow production. Other compatible devices include seedling heat mats to activate heating for homebrewing and fermenting beverages, warming terrariums, or starting, germinating, and propagating seeds.
| Product Identification |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
CONTROLLER 79 PRO |
| Product Model |
CTR79P |
| UPC Code |
819137024441 |

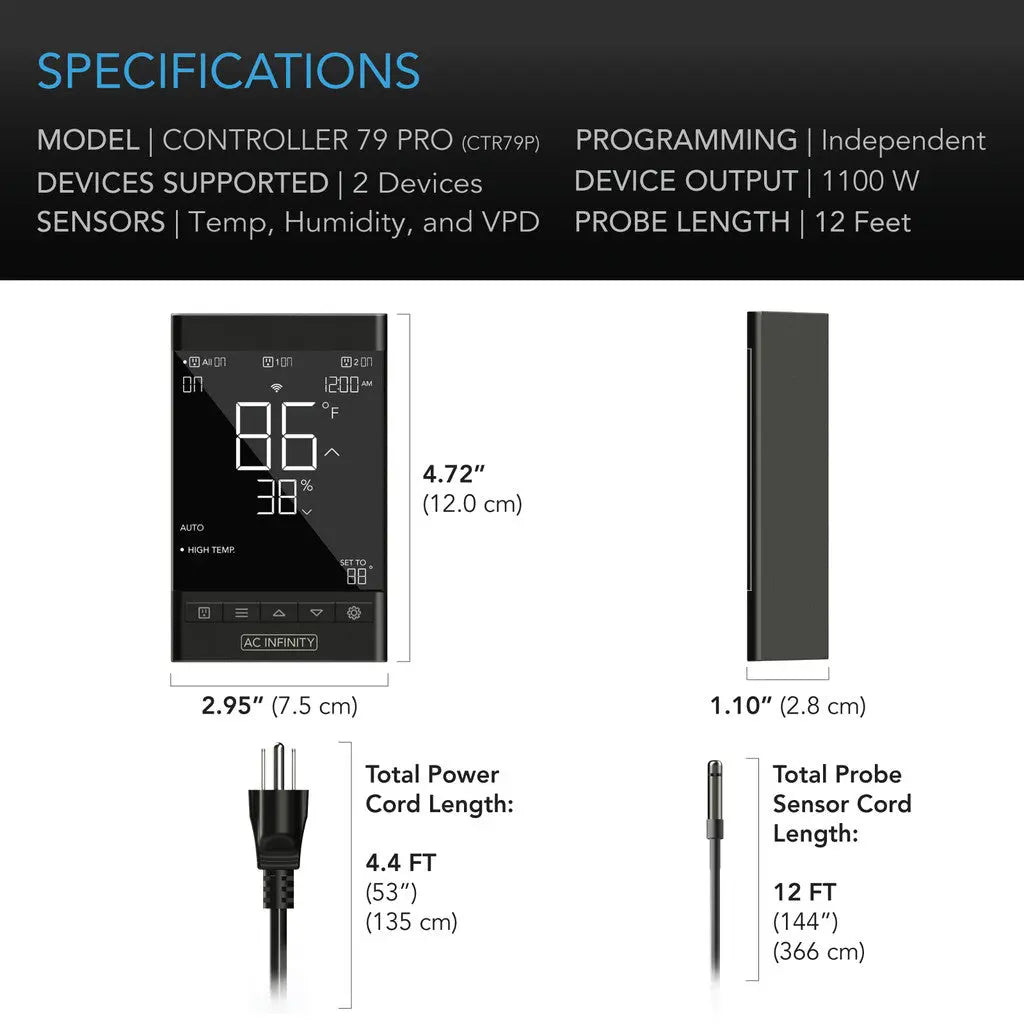

| Product and Mounting Dimensions - Controller |
| Total Dimensions |
2.95 x 4.72 x 1.10 in. (7.5 x 4.72 x 2.8 cm) |
| Display Size |
2.53 x 2.98 in. (6.43 x 7.57 cm) |
| Power Cord Length |
53 in. (4.4 feet) |
| Sensor Probe Length |
144 in. (12 feet) |
|
Product Performance and Technical Specs
|
| Outlets |
2 |
| Max Power Supported |
1100 W |
| Programming Temperatures |
32 to 140°F |
| Operating Voltage |
100 to 240V |
| Power |
1.2 W |
| Current |
10 A |
| Wall Adapter Input |
100 to 240V AC |
| Operating Humidity |
35 to 85% RH |
|
