ALIEN Hydroponics
V-System Kit
THE ULTIMATE RECIRCULATING DEEP WATER CULTURE SYSTEM
Welcome to the future of hydroponics. The powerful V-SYSTEM™ has been designed to help you grow trees with brand-new technology never seen before in the industry. Years have been spent developing this highly-oxygenated RDWC system that will give you the healthiest root zones and massive yields.
In an industry first, the V-SYSTEM doesn't use an air pump to oxygenate the nutrient solution, using Venturi valve technology instead. Simple, yet effective- and no more clogged airstones!
Using precision design, the water flow creates a whirlpool vortex that oxygenates and circulates the fluid content of the entire pot, rather than just the area around the airstone. No matter where your roots are growing in the pot, they will receive the highest oxygen and nutrient levels to grow exceptional crops.
Ultra-wide, customizable length, 5" return-flow tubing minimizes issues with roots clogging the pipes, and the Vortex pump creates a free-flowing system that simultaneously injects each pot with fresh nutrient solution from the header. Whether you have a 4 or 20 pot system, the nutrients supplied to your plants will be equal in every pot, giving you a consistent crop. Direct injection gives a vastly faster response to nutrient/pH dosing compared to other RDWC systems!
The massive 15-gallon / 58 liter V-SYSTEM pots create giant root zones allowing for huge plants and the highest yields. Expertly designed, the sloped shape of the pot bottom allows you to drain the entire system so you'll only grow in the freshest water.
Unlike other hydroponics systems, the V-SYSTEM's JET-STREAM® Vortex water pump is located outside the header pot and air-cooled, so less heat is transferred to the fluid. Cooler water temps mean less chance of root rot and other pathogens affecting your crop. The pump is also easier to clean!
Now is the time to be part of the new wave of hydroponics systems that will make it easier for you to grow bigger and better than ever before.
Key V-SYSTEM Benefits:
- Direct nutrient distribution
- Maximum oxygen saturation
- No air pump needed
- No heat transferred
- Vortex fluid motion
- Naturally aspirated
- Supports large plants
- Pots and system completely drain
- Prevents root clogging
- Made in Britain
Key V-SYSTEM Features:
- 15 gallon (58L) V-POT
- Water fill line
- Total-drainage bases
- Venturi injectors
- Inspection Covers
- 5" spiral tubing
- 5" Dual-Flow™ fittings
- Integrated filtration
- T304 Stainless clamps
- Heavy-duty components
- Push-fit feed connections
- JET-STREAM® Vortex™ pump

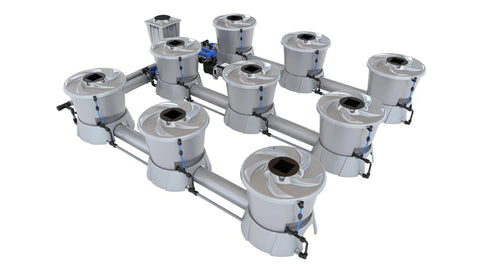

V-SYSTEM 9 Pot 3 Row Kit
Technical Information
| Number of pots: |
9 |
| Number of rows: |
3 |
| |
|
| Kit total fluid volume: |
146.4 gallons (554 L) |
| |
|
| Length: |
6' 4.8" (76.8 inches / 1950 mm) |
| Width: |
5' 9.3" (69.3 inches / 1760 mm) |
| |
|
 |
| Model: |
V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h |
| Wattage: |
370 watts |
| Flow Rate: |
3487 gal/hr (13200 L/hr) |
| |
|
| Recommended water chiller minimum capacity: |
198 gallons (750 L) |
|
CAD Drawing PDF
Instruction Manual PDF

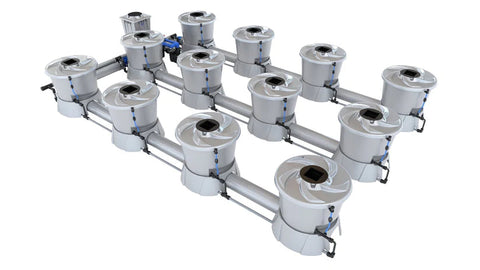

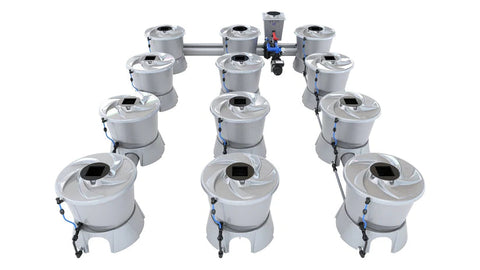

V-SYSTEM 12 Pot 3 Row Kit
Technical Information
| Number of pots: |
12 |
| Number of rows: |
3 |
| |
|
| Kit total fluid volume: |
195.5 gallons (740 L) |
| |
|
| Length: |
8' 3.6" (99.6 inches / 2530 mm) |
| Width: |
5' 9.3" (69.3 inches / 1760 mm) |
| |
|
 |
| Model: |
V-SYSTEM Vortex Water Pump 550W 120V 13800 l/h |
| Wattage: |
550 watts |
| Flow Rate: |
3646 gal/hr (13800 L/hr) |
| |
|
| Recommended water chiller minimum capacity: |
264 gallons (1000 L) |
|
CAD Drawing PDF
Instruction Manual PDF

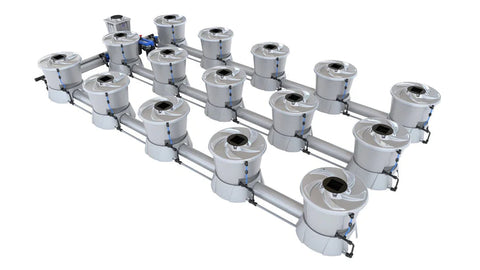

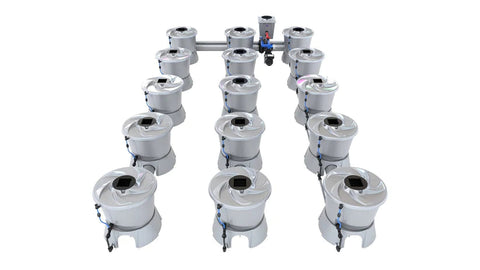

V-SYSTEM 15 Pot 3 Row Kit
Technical Information
| Number of pots: |
15 |
| Number of rows: |
3 |
| |
|
| Kit total fluid volume: |
244.6 gallons (926 L) |
| |
|
| Length: |
10' 2.4" (122.4 inches / 3110 mm) |
| Width: |
5' 9.3" (69.3 inches / 1760 mm) |
| |
|
 |
| Model: |
V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h |
| Wattage: |
750 watts |
| Flow Rate: |
3963 gal/hr (15000 L/hr) |
| |
|
| Recommended water chiller minimum capacity: |
396 gallons (1500 L) |
|
CAD Drawing PDF
Instruction Manual PDF

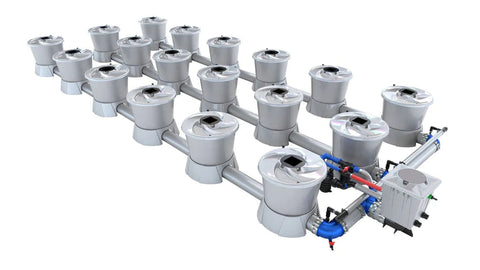

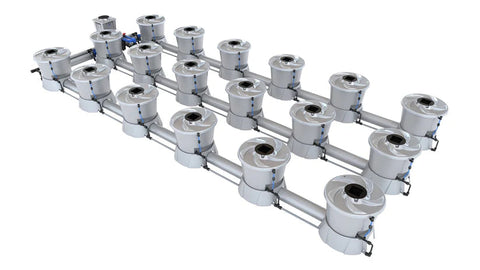

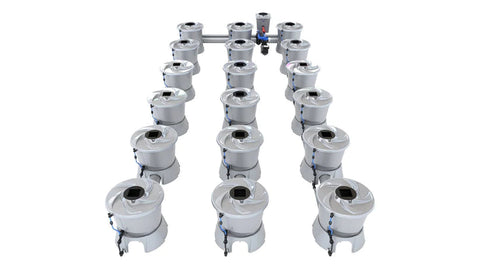

V-SYSTEM 18 Pot 3 Row Kit
Technical Information
| Number of pots: |
18 |
| Number of rows: |
3 |
| |
|
| Kit total fluid volume: |
293.8 gallons (1112 L) |
| |
|
| Length: |
12' 1.3" (145.3 inches / 3690 mm) |
| Width: |
5' 9.3" (69.3 inches / 1760 mm) |
| |
|
 |
| Model: |
V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h |
| Wattage: |
1100 watts |
| Flow Rate: |
4676 gal/hr (17700 L/hr) |
| |
|
| Recommended water chiller minimum capacity: |
528 gallons (2000 L) |
|
CAD Drawing PDF
Instruction Manual PDF
