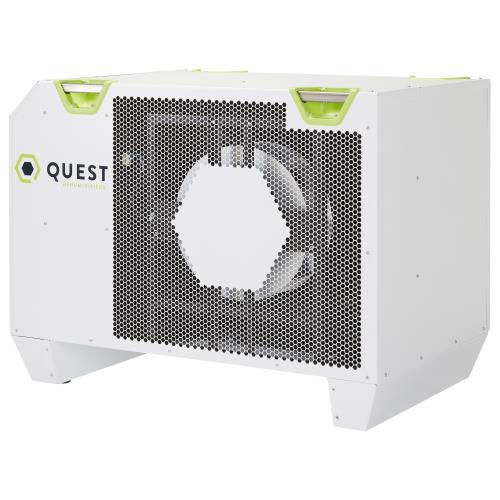

Quest 746
Commercial Dehumidifier, 746 Pint
Quest 746 is the industry’s first 750 pint, 480v 3-phase, commercial dehumidifier designed for commercial growing at scale. Like all Quest products it can be placed at ground level for immediate operation or hung overhead and out of the way. The Quest 746 480v is one of the most energy-efficient, high-capacity dehumidifier on the planet, using minimal Amps (6.5) and maximum efficiency (7.2 pints/kWh). It is made in the USA. Optional condensate pump and ducting kits provide the ultimate flexibility for the most challenging space restrictions and specialized applications. MERV-13 filtration is standard on these units, capturing particles (including mold spores) down to 1 micron in size.
An additional Humidistat is required; we recommend the DEH 3000R Wall Mounted Unit #700833.
Warranty: 1 year parts and labor. 5 year compressor and refrigerant system.
FEATURES:
OVERHEAD OR GROUND PLACEMENT
Built to fit what works for your space
WIDEST OPERATING RANGE
Of temperature and relative humidity
UL RATED AND ETL LISTED
The highest safety standard
INTEGRATED HANDLES
For ease of movement
AUTO RESTART
Unit automatically defaults to prior settings in the event of a power outage
MERV 13 FILTRATION
Superior filtration removes more harmful contaminants from the air such as dust, pollen and mold as well as bacteria and some viruses
SPECIFICATIONS:
@ 80 F / 60% RH
Water Removal: 746 Pints/Day
Efficiency: 7.3 Pints/kWh
Energy Factor: 3.5 Liters/kWh
Current Draw: 6.5A @480V
Power: 4,300 Watts
BTU (Total): 48,400
BTU (Heat of Condensation): 33,900
BTU (Motor Load): 14,500
@ 75 F / 50% RH
Water Removal: 530 Pints/Day
Efficiency: 5.0 Pints/kWh
Energy Factor: 2.4 Liters/kWh
Operating Temperature
56 F Min–95 F Max
Supply Voltage
480V, 3 Phase
Unit Dimensions
36″ W x 48″ H x 40″ L
Control Type
External Control Required
Air Filter MERV Rating
MERV 13
Air Filter Dimensions
18″ x 20″ x 2″
Power Cord
No cord included
Refrigerant Amount
6 lb 7 oz
Drain Port Connection
3/4″ Threaded NPT
Warranty
5 Year
DOWNLOADS
